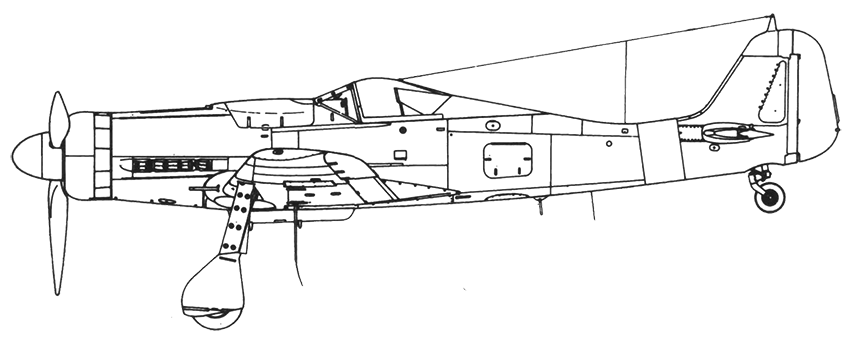

Focke Wulf Fw 190

Specifications: Focke Wulf Fw 190D

Type: Fighter & Fighter/Bomber
Origin: Focke-Wulf Flugzeugbau Gmbh.
Models: D series
First Flight: Late 1942
Final Delivery: N/A

---

Powerplant:

• Model: Junkers Jumo 213A-1
• Type: Water-Cooled Inverted V12
• Number: One
• Horsepower: 1,776 hp (2,240 hp Emergency Boost)

---

Dimensions:

Wing span: 34 ft. 5½ in. (10.50m)
Wing Surface Area: 196.99 Sq. Ft. (18.30m²)
Length: 33 ft. 5¼ in. (10.2m)
Height: 11 ft. 0¼ in. (3.35m)

---

Weights:

Empty: 3,500 kg (7,720 lbs.)
Loaded: 4,840 kg (10,670 lbs.)

---

Performance:

Maximum Speed: 440mph (704kph)
Cruise Speed: N/A
Range: 560 miles (900km)
Initial Climb: 3,300 ft. (1000m) Per Minute
Endurance: N/A
Service Ceiling: 32,810 ft. (10,000m)

---

Armament:

Two 13mm MG 131 above engine
Two 20mm MG 151/20 in wing roots

Bomb Load:

One 1,100 lb. (500 kg) bomb on centerline.
