Arado Ar 232

Type:: Tactical Transport
Origin: Arado Flugzeugwerke GmbH
Models: B
First Flight: April 1941
Service Delivery: Autumn 1942
Final Delivery: N/A
Powerplant(s):
Model: BMW-Bramo 323R-2 Fafnir
Type: Nine-cylinder radials
Number: Four      Horsepower: 1,200 hp
Dimensions:
Wing span: 33.50m (109 ft. 10¾ in.)
Length: 23.52m (77 ft. 2 in.)
Height: 5.69m (18 ft. 8 in.)
Wing Surface Area: 142.60m² (1,535 sq. ft.)
   Weights:
Empty: 12,780kg (28,175 lbs.)
Maximum: 21,150kg (46,634 lbs.)
Performance:
Cruise Speed: 288km/h (180 mph)
Range with max. payload (9,921 lb. (4500kg)):
— 660 miles (1050km)
Min. field lenth at gross weight: 3,100 ft. (945m)

Armament:
One Mg 131 mounted in the nose.
One Mg 131 mounted in the rear.
One 20mm Mg 151 mounted in an EDL 151 Dorsal turret.
Eight MG 34 infantry machine guns mounted in the sides.

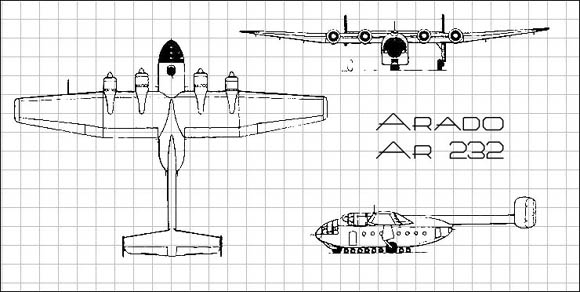

Arado Ar 232

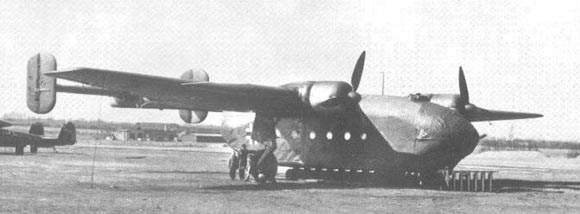

 Arado Ar 232
BACK TO TRANSPORT MENU
 BACK TO MAIN MENU
Sources:
Gunston, Bill & Wood, Tony - Hitler's Luftwaffe, 1977, Salamander Books Ltd., London
