DOUGLAS TBD DEVASTATOR

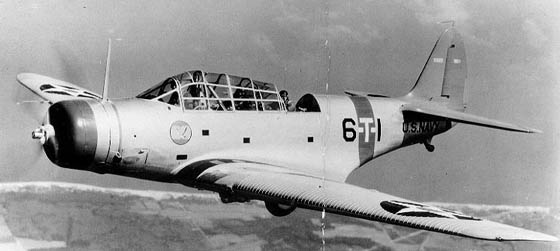

(Source: U.S. Navy)
The Douglas TBD Devastator was a torpedo bomber of the United States Navy, ordered in 1934, first flying in 1935 and entering service in 1937. At that point, it was the most advanced aircraft flying for the USN and possibly for any navy in the world. However, the fast pace of aircraft development caught up with it, and by the time of the Japanese attack on Pearl Harbor the TBD was already outdated. It performed well in some early battles, but in the Battle of Midway the Devastators launched against the Japanese fleet were almost totally wiped out. The type was immediately withdrawn from front line service, replaced by the Grumman TBF Avenger.
Design and development
The TBD Devastator marked a large number of "firsts" for the U.S. Navy. It was the first widely-used carrier-based monoplane as well as the first all-metal aircraft, the first with a totally enclosed cockpit, the first with hydraulically folding wings; it is fair to say that the TBD was revolutionary. A semi-retractable undercarriage was fitted, with the wheels designed to protrude ten inches (250 mm) below the wings to permit a "wheels-up" landing with only minimal damage.
A crew of three was carried beneath a large "greenhouse" canopy almost half the length of the aircrft. The pilot, of course, sat up front; a rear gunner/radio operator took the rearmost seat, while the bombardier occupied the middle seat. During a bombing run, the bombardier lay prone, sliding into position under the pilot to sight through a window in the bottom of the fuselage, using the Norden Bombsight. The offensive armament that he targeted would be either a single Bliss-Leavitt Mark XIII aerial torpedo or a single 1000 lb (450 kg) bomb. Defensive armament consisted of either a .30 or .50 cal (7.62 or 12.7 mm) machine gun firing forwards, and a .30 caliber (7.62 mm) machine gun for the rear gunner.
The powerplant was a Pratt & Whitney R-1830-64 Twin Wasp radial engine of 900 horsepower (671 kW).
A total of 129 of the type were purchased by the U.S. Navy's Bureau of Aeronautics (BuAer), equipping the carriers USS Saratoga, USS Enterprise, USS Lexington, USS Wasp, USS Hornet, USS Yorktown and USS Ranger.
The U.S. Navy became aware by about 1940 that the TBD had become outclassed by the fighters and bombers of other nations and a replacement (the TBF Avenger) was in the works, but it was not in service yet when the United States entered World War II. By then, training attrition had reduced their numbers to just over 100 aircraft. The Devastator had become a death trap for its crews; slow and poorly maneuverable, with light defensive weaponry and poor armor relative to the weapons of the time. Its speed on a glide-bombing approach was a mere 200 miles per hour, making it easy prey for fighters and defensive guns alike. The aerial torpedo could not even be released at speeds above 100 knots.
The U.S. Navy assigned popular names to its aircraft in late 1941, and the TBD became the "Devastator".
Sources:
Wikipedia: Douglas TBD Devastator
|
|
|
