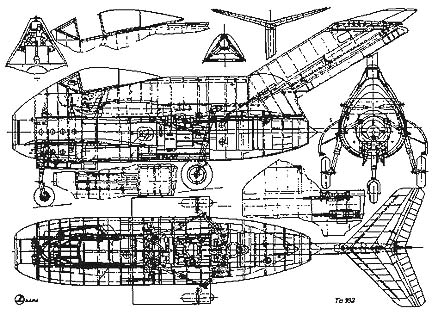

Focke-Wulf/Tank Ta 183 Project I



Origin: Focke-Wulf Flugzeugbau GmbH
Models: N/A
Type: N/A (Assumed fighter)
Engine: N/A
Dimensions:
Wing Span: 10.00m
Length: 9.4m
Height: N/A
Wing Area: 22.52 Sq M

Weights:
Empty: 2,830 kg
Loaded: 4,300 kg
Fuel: 1,250 kg
Ammunition: 120 kg

Performance:
    871 kph (541 mph) At Sea Level
    955 kph (593 mph) At 22,960 Feet
Initial Rate Of Climb: 4,020 Ft/min
Take Off Distance: 2,160 Ft.
Landing Speed: 102 mph
Landing Distance: 1,665 Ft.
Ceiling: 45,920 Ft.
Range:N/A

Armament: N/A

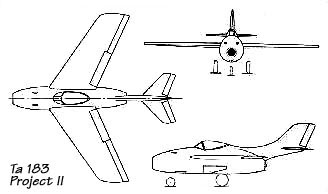

Focke-Wulf/Tank Ta 183 Project II



Origin: Focke-Wulf Flugzeugbau GmbH
Models: N/A
Type: N/A (Assumed fighter)
Engine: N/A

Dimensions:
Wing Span: 9.5m
Length: 8.75m
Height: N/A
Wing Area: 20.02 Sq M

Weights:
Empty: 2,650 kg
Loaded: 4,120 kg
Fuel: 1,250 kg
Ammunition: 120 kg

Performance:
    905 kph (541 mph) At Sea Level
    963 kph (593 mph) At 22,960 Feet
Initial Rate Of Climb: 4,560 Ft/min
Take Off Distance: 2,160 Ft.
Landing Speed: 103 mph
Landing Distance: 1,680 Ft.
Ceiling: 44,280 Ft.
Range:N/A

Armament: N/A



Sources:
Gunston, Bill & Wood, Tony - Hitler's Luftwaffe, 1977, Salamander Books Ltd., London
