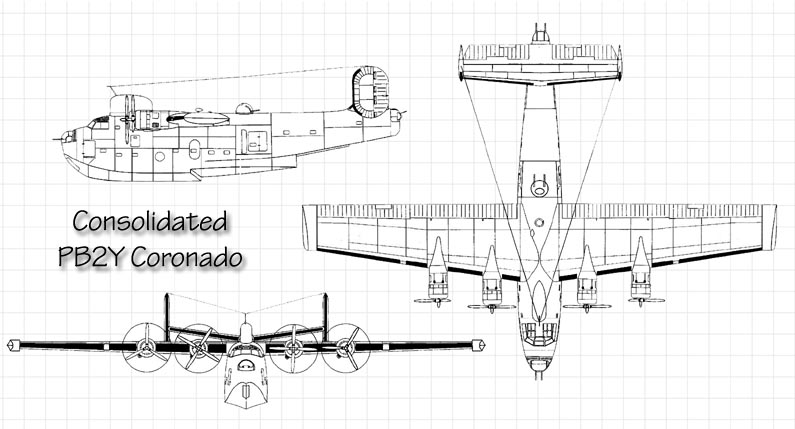

Consolidated PB2Y Coronado
Specifications

Type: Maritime Patrol bomber and transport flying boat
Origin: Consolidated
Crew: 10
Models: PB2Y
First Flight: N/A
Service Delivery: circa 1935
Final Delivery: N/A
Combat Debut: N/A
Production: N/A
Powerplant:
  Model: Pratt & Whitney R-1830-92
  Type: radial engine
  Number: Four
  Horsepower: 1,200 hp
Dimensions:
Length: 79 ft. 3 in. (24.2m)
Height: 27 ft. 6 in. (8.4m)
Wing Span: 115 ft (35m)
Wing Area: 1,780 ft² (165.3m²)
   Weights:
Empty: 40,850 lb (18,530 kg)
Maximum: 66,000 lb (30,000 kg)
Performance:
Maximum speed: 194 mph (310 kph)
Cruise speed: 170 mph (272 kph)
Range: 1,070 mi (1,720 km) at 131 mph (210 kph)
Service ceiling: 20,500 ft (6,250 m)
Armament:
6 × .50 in (12.7 mm) M2 Browning machine guns in twin nose, dorsal, and tail powered turrets
2 × .50 in M2 Browning machine guns in manual waist mounts

Bomb Load:
2× Mark 13 torpedoes or
Up to 12,000 lb (5,400 kg) of bombs, housed in the wings
