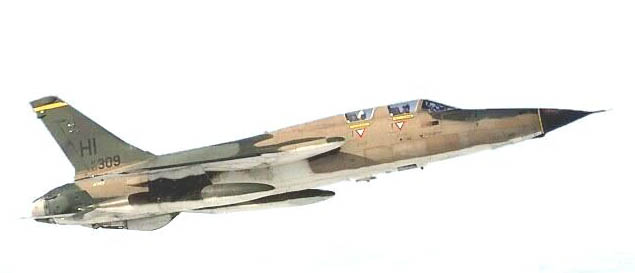

Manufacturer: Republic
Type:
Single seat all weather fighter
(F) Two-seat operational Trainer
(G) Two-seat ECM "Wild Weasel"
Models: B, D, F, G
First Flight:
YF-105A: Oct 22, 1955
F-105B (Production): May 26, 1956.
F-105D: June 9, 1959
F-105F: June 11, 1963
Final Delivery: 1965
Number built:
75 F-105B
600 F-105D
143 F-105F
Powerplant:
Model: Pratt & Whitney J75
Type: Two-Shaft afterburning turbojet
Thrust:
F-105B (J75-5): 23,500 lb. (10,660 kg)
F-105D, F, G (J75-19W): 24,500 lb. (11,113 kg)
Dimensions:
Span: 34 ft. 11.25 in (10.65m)
Length
F-105B, D: 64ft. 3 in. (19.58m)
F-105F, G: 69 ft. 7.5in. (21.21m)
Height:
F-105B, D: 19 ft 8 in (5.99m)
F-105F, G: 20 ft. 2 in (6.15m)
Wing Area: N/A
| |
Weight:
Empty:
F-105D: 27,500 lb. (12,474 kg.)
F-105F,G: 28,383 lb. (12,879 kg.)
Maximum Loaded:
F-105B: 40,000 lb. (18,144 kg)
F-105D: 52,546 lb. (23, 834 kg)
F-105F, G: 54,000 lb. (24,495 kg)
Performance:
Maximum Speed:
F-105B: 1,254 mph
F-105D, F, G: 1,480 mph (2382 kph/Mach 2.25)
Initial Climb:
F-105B, D: 34,500 ft./min (10,500m/min)
F-105F, G: 32,000 ft./min (9750m/min)
Service Ceiling (Typical): 52,000 ft. (15,850m)
Tactical Radius (with sixteen 750 lb bombs:
F-105D: 230 miles (370 km)
Ferry Range (with Max. Fuel): 2,390 miles (3846 km)
Armament:
One 20mm M-61 multi-barreled rotary machine gun
Position: Left side of fuselage
Ammunition: 1,029 Rounds.
Bombload:
Internal Bay: Up to 8,000 lb (3629 kg) of bombs.
External Pylons (in addition to internal load):
Up to 6,000 lb. (2722 kg) of bombs.
|
