BOEING B-29 SUPERFORTRESS
Variants

XB-29
The XB-29, Boeing Model 345, was the first accepted prototype or experimental model delivered to the Army Air Corps, incorporating a number of improvements on the design originally submitted, including more and larger guns and self-sealing fuel tanks. Two aircraft were ordered in August 1940, and a third was ordered in December. A mockup was completed in the spring of 1941, and it first flew on September 21, 1942.

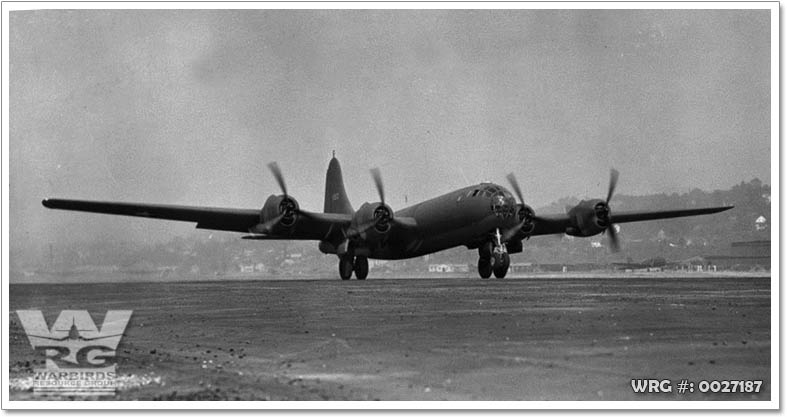

One of the XB-29 prototypes takes off from Boeing Field, Seattle, Washington..
One of the XB-29 prototypes takes off from Boeing Field, Seattle, Washington.
[Source: Boeing Photo]

Testing continued until February 18, 1943, when the second prototype crashed. Flown by Boeing's chief test pilot, Edmund T. "Eddie" Allen on a two-hour powerplant performance test, leaking fuel from a filler cap in the wing leading edge ran down inside the leading-edge and ignited, spreading to the engines. Due to the much reduced power, the aircraft, unable to climb, crashed into the Frye meat-packing plant, demolishing the majority of the packing plant and killing all eleven crew, 22 employees at the plant and one fireman. The crash killed many élite Boeing personnel involved in the design; the pilot, Allen, was chief of the Research Division. After the crash, the United States Army Air Forces and a congressional committee headed by then-Senator Harry S. Truman investigated the B-29 program issuing a scathing report, prompting the Army Air Forces to take control of the program.

YB-29

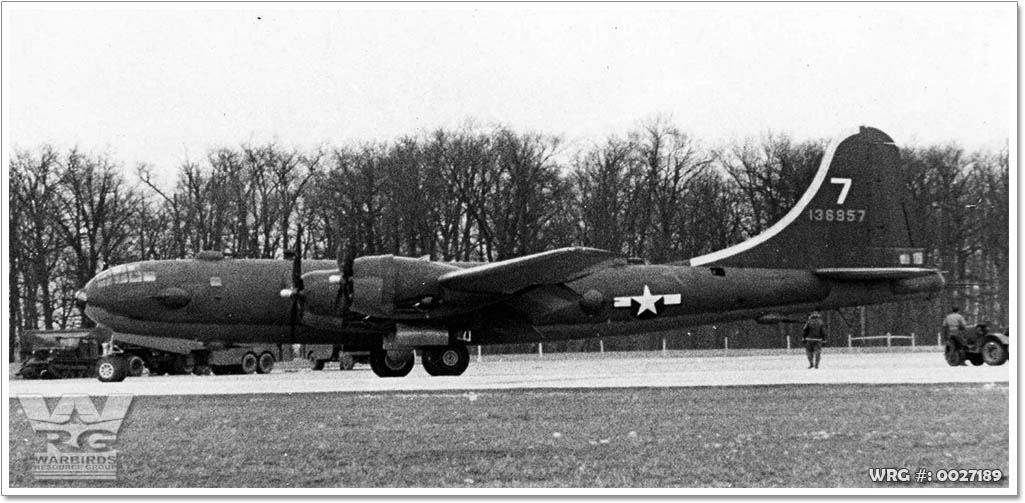

Boeing YB-29-BO (S/N 41-36957). Note the nose has an Erco ball turret with twin .50-cal. machine guns, and the fuselage package guns just below and aft of the cockpit have twin .50-cal. machine guns mounted.

Boeing YB-29-BO/41-36957.
Boeing YB-29-BO/41-36957.
[Source: Boeing Photo]

The YB-29 was an improved XB-29 and 14 were built for service testing. Testing began in the summer of 1943, and dozens of modifications were made to the planes. The engines were upgraded from Wright R-3350-13s to R-3350-21s. Where the XB-29 had three-bladed props, the YB-29 had four-bladed propellers.

Boeing YB-29-BO/41-36957.

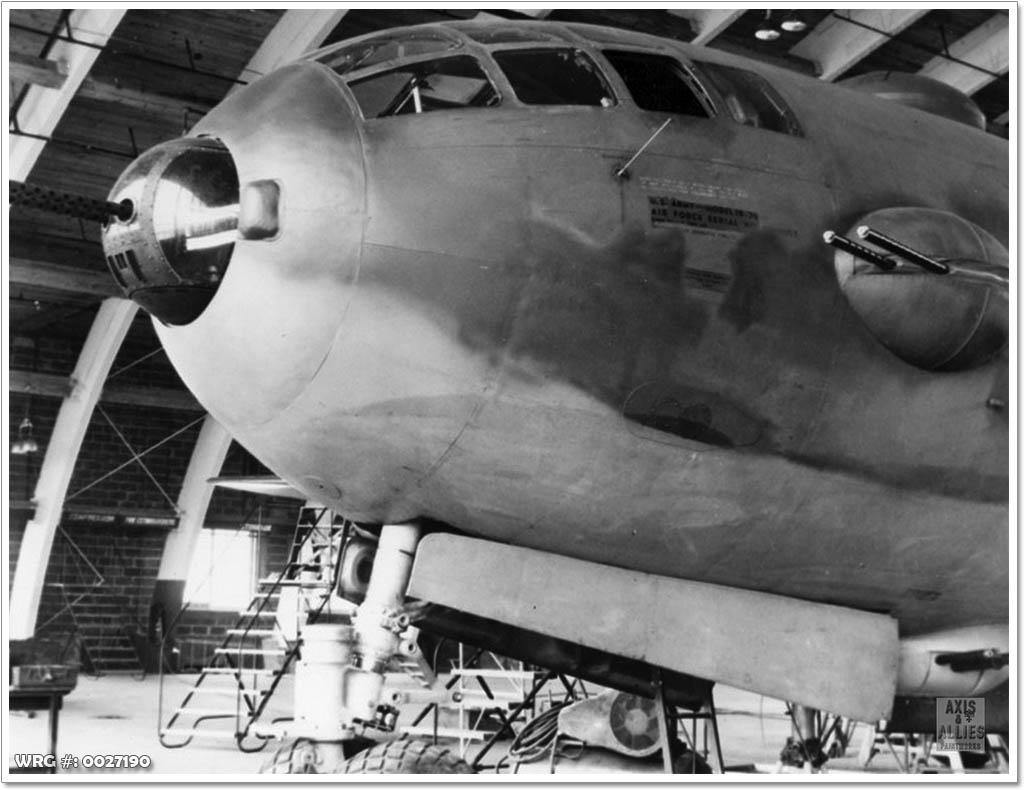

Boeing YB-29-BO/41-36957 nose armament.
[Source: Boeing via Duggy/axis-and-allies-paintworks.com]

Various alternatives to the remote-controlled defensive systems were tested on a number of them, particularly the fourth one delivered. After alternative arrangements had been fully tested, defensive armament was standardised at ten .50-calibre machine guns in turret-mounted pairs. The YB-29 also featured a better fire control system.

B-29
The B-29 was the original production version of the Superfortress. Since the new bomber was urgently needed, the production design was developed in tandem with the service testing. In fact, the first B-29 was completed only two months after the delivery of the first YB-29. Forty-six B-29s of this variant, built by the Glenn L. Martin Company at its Omaha plant, were used as the aircraft for the atomic bomb missions, modified to Silverplate specifications.

Some 2,513 B-29s were manufactured by Boeing-Wichita (1,620), Bell-Atlanta (357), and Martin-Omaha (536).

B-29A/Washington B Mk 1
The B-29A was an improved version of the original B-29 production model. All 1,119 B-29A's were built at the Boeing plant in Renton, Washington, formerly used by the United States Navy.

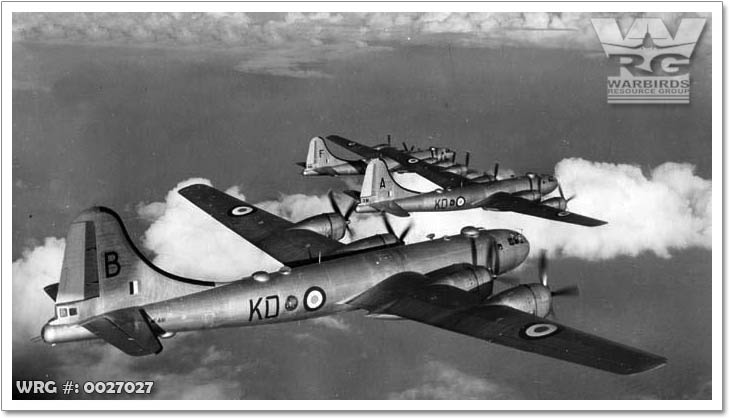

3 Boeing Washington B.1s in RAF service, circa 1951
3 Royal Air Force Washington B.1s, circa 1951
[Source: United States Air Force Historical Research Agency]

Enhancements made in the B-29A included a better wing design and defensive modifications. Due to a demonstrated weakness to head-on fighter attacks, the number of machine guns in the forward dorsal turrets was doubled to four. Where the wings of previous models had been made by the sub-assembly of two sections, the B-29A wing was built up from three. This made construction easier, and increased the strength of the airframe. The B-29A was produced until May 1946, when the last aircraft was completed. It was much used during the Korean War, but was quickly phased out when the jet bomber (B-47 Stratojet) became operational.

The Royal Air Force received 88 B-29A as the Washington B Mk 1.

B-29B
The B-29B was a modification used for low-level raids, designed with the intent of firebombing Japan. Since fighter opposition was minimal over Japan in late 1944, many of the Army Air Force leadership — most notably Curtis LeMay, commander of the XXI Bomber Command — felt that a (lighter) faster bomber would better evade Japanese flak.

In the B-29B, as with the atomic raid-dedicated Silverplate versions earlier, all defensive armament was removed except for that in the tail turret. Initially the armament was two .50 in M2/AN machine guns and one 20 mm M2 cannon which was soon changed to three .50 in M2/ANs. The weight saved by removing the gun system increased the top speed from 357 mph to 364 mph (575 km/h to 586 km/h).

Also incorporated on this version was an improved APQ-7 "Eagle" bombing-through-overcast radar that was fitted in an airfoil-shaped radome under the fuselage.

All 311 B-29Bs were built at the Bell plant in Marietta, Georgia ("Bell-Atlanta").

B-29C
The B-29C was a modification of the B-29A re-engined with improved Wright R-3350 engines. The Army Air Force originally ordered 5,000, but cancelled its request when World War II ended and none were built.

B-29D (XB-44)
The B-29D was an improved version of the original B-29 design, featuring 28-cylinder Pratt & Whitney R-4360-35 Wasp Major engines of 3500 hp (2600 kW) each — nearly 60% more powerful than the usual Duplex-Cyclone. It also had a taller vertical stabilizer and a strengthened wing. The XB-44 was the testbed designation for the D model.

When World War II ended, the B-29D was given the quartet of Wasp Major engines to become the B-50, which served throughout the 1950s in the U.S. bomber fleet.

XB-29E
The XB-29E for fire-control systems (one converted) was a model B-29-45-BW.

XB-29F
The B-29F for cold-weather operation in Alaska were six converted B-29-BWs.

XB-29G
The B-29 was used in the development of jet engines. Stripped of armament, a converted B-29B-55-BA (44-84043)(Bell) designated the XB-29G carried experimental jet engines in its bomb bay, which were extended into the airstream for testing during flight. This plane was used to test the Allison J35, General Electric J47 and J73 jet engines.

XB-29F
The XB-29H to test armament configurations was a converted B-29A.

YB-29J, YKB-29J, RB-29J
Experimentation in piston engines continued. Six B-29s (redesignated YB-29J) of various designation were upgraded to R-3350-79 engines. Other engine-associated items were also upgraded, including new Curtiss propellers, and 'Andy Gump' cowlings, in which the oil coolers have separate air intakes. Two were later converted to aerial refueling tanker prototypes, and redesignated YKB-29J. The remainder were used for reconnaissance, and designated RB-29J.

KB-29
The Boeing KB-29 was a modified Boeing B-29 Superfortress for air refueling needs by the USAF. Two primary versions were developed and produced: KB-29M and KB-29P.

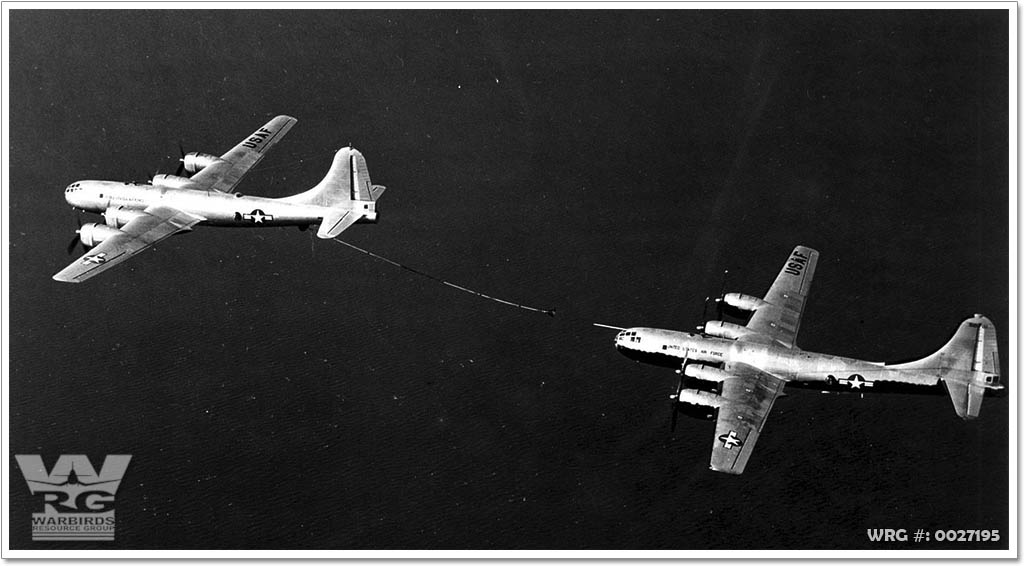

A KB-29M equipped with hose and drogue refuels a KB-29MR modified with a nose probe.
A KB-29M equipped with hose and drogue refuels a KB-29MR modified with a nose probe.
[Source: USAF Photo]

The 509th and 43d Air Refueling Squadrons (Walker AFB, NM and Davis-Monthan AFB, AZ respectively) were created in 1948 to operate the KB-29M tankers. The 303d Bombardment Wing at Davis-Monthan AFB flew B-29s and KB-29s from 1951 to 1953 that provided training for strategic bombardment and air refueling operations to meet SAC's global commitments. Deployed at Sidi Slimane AB, French Morocco, Oct 5 - Nov 6, 1952.

EB-29
The EB-29 (E stands for exempt), was used as a carrier aircraft in which the bomb bay was modified to accept and launch experimental aircraft. They were converted in the years following World War II. One EB-29 was converted to carry the famous Bell X-1 until it was replaced by a B-50. Another was used to carry and test the XF-85 'parasite fighter'. This fighter was intended to be carried by the Convair B-36 on long-range missions to protect it from Soviet fighters. Another EB-29 was used to carry two EF-84B Thunderjet fighters as part of Project Tom-Tom. All three Tom-Tom aircraft (the B-29 and the two jet fighters) and their crews were lost in a crash on April 24, 1953.

RB-29J (RB-29, FB-29J, F-13, F-13A)
Early B-29/B-29As that were modified for photo reconnaissance carried the F-13/F-13A designations, with "F" meaning 'photo'. The aircraft (118 modified B-29BWs and B-29As) carried three K-17B, two K-22 and one K-18 cameras. Between the end of World War II (1945) and 1948 the designation was changed to FB-29J. In 1948, the F-13/FB-29s were redesignated RB-29 and RB-29A.

Six B-29A/F-13As were modified with the Wright R-3350-CA-2 fuel injected engines and designated at YB-29Js. These were then converted to RB-29Js.

In January 1949, RB-29s were assigned to the 91st Strategic Reconnaissance Wing and moved to Yokota AB, Japan in December 1950; to provide support to the Korean War and attached to the 15th Air Force, Far East Air Force.

SB-29
The SB-29 'Super Dumbo' was a version of the B-29 adapted for air-sea rescue duty near the end of World War II. Sixteen B-29s were modified to carry a droppable A-3 lifeboat under the fuselage, the SB-29 was used mainly as rescue support for air units that flew long distances over water. With the exception of the forward lower gun turret, all defensive armament was retained. They also carried a variety of radio equipment, provisions, survival kits, and extra crew. It was used throughout the Korean War into the mid-1950s. It received its nickname from "Dumbo", the Disney character, whose name was given to the aircraft used in previous missions to pick airmen up when they crashed at sea.

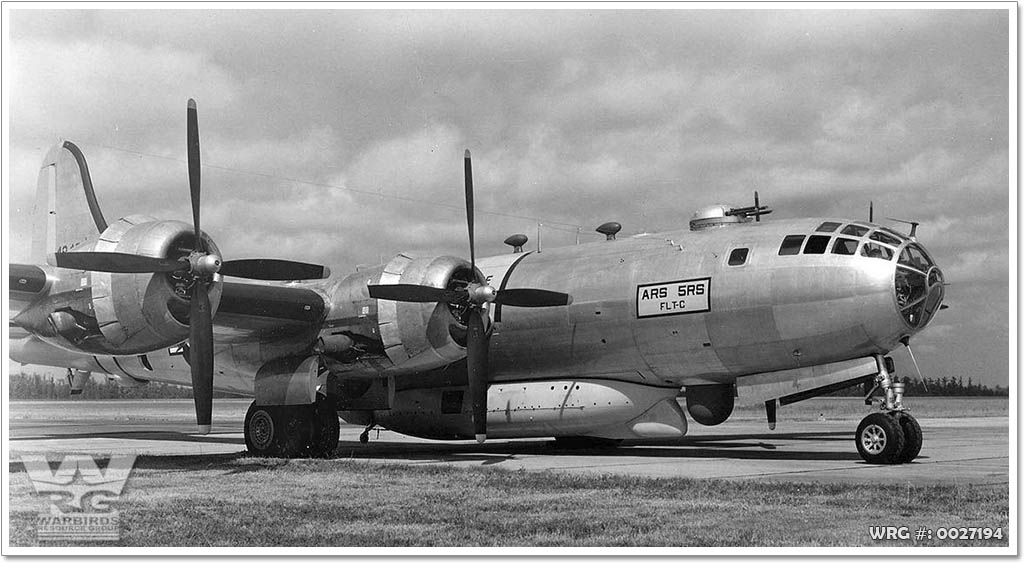

SB-29 Superfortress
SB-29 Superfortress
[Source: USAF Photo]

TB-29
The TB-29 was a trainer conversion of B-29 used to train crew for bombing missions; some were also used to tow targets, and the designation included B-29s modified solely for that purpose. Their most important role was serving as radar targets in the 1950s when the United States Air Force was developing intercept tactics for its fighters.

WB-29
The WB-29s were production aircraft modified to perform weather monitoring missions. An observation position was fitted above the central fuselage section. They conducted standard data-gathering flights, including from the UK over the Atlantic. They were also used to fly into the eye of a hurricane or typhoon to gather information. Following nuclear weapons tests, some WB-29s used air sampling scoops to test radiation levels. On 3 September 1949, a WB-29 returning from Yokota AB, Japan, to Eielson AFB, Alaska, recovered radioactive debris in air sampling scoops from the cloud generated by the first atomic bomb test by the Soviet Union on 29 August.

Airborne Early Warning
In 1951, three B-29s were modified for use in the Airborne Early Warning programme. The upper section of the forward fuselage was extensively modified to house an AN/APS-20C search radar, and the interior was modified to house radar and Electronic Counter Measures (ECM) equipment. This development led to production radar picket aircraft, including the EC-121 Warning Star. (×3, converted)

A Soviet-built copy of the B-29, the Tu-4, was used as the platform for a Chinese experimental airborne early warning aircraft, the KJ-1 AEWC, in the 1970s.

MX-767 Banshee
A study for the conversion of B-29s to long-range cruise missiles was conducted by the Air Material Command between 1946 and 1950; given the designation MX-767, it was given the codename Project Banshee. Flight tests were conducted, however no full conversions were carried out before the project was abandoned.

Navy P2B patrol bomber
The U.S. Navy acquired four B-29-BWs from the U.S. Army Air Forces on March 14, 1947. These aircraft were modified for long-range patrol missions and given the designation P2B-1S with Navy Bureau Numbers (BuNo) 84028, 84029, 84030 and 84031.

BuNo 84029, previously AAF Ser. No. 45-21787, later went through modifications to carry the Navy's Douglas D-558-2 Skyrocket high-speed rocket-powered research aircraft. The bomb bay was modified to carry the Skyrocket II under the belly and dropped for supersonic speed testing. The first Skyrocket test flight occurred on September 8, 1950 with test pilot William B. Bridgeman, and George Jansen flying the B-29. Scott Crossfield later broke Mach 2 with the Skyrocket on November 20, 1953; the last Skyrocket flight was in December 1956.

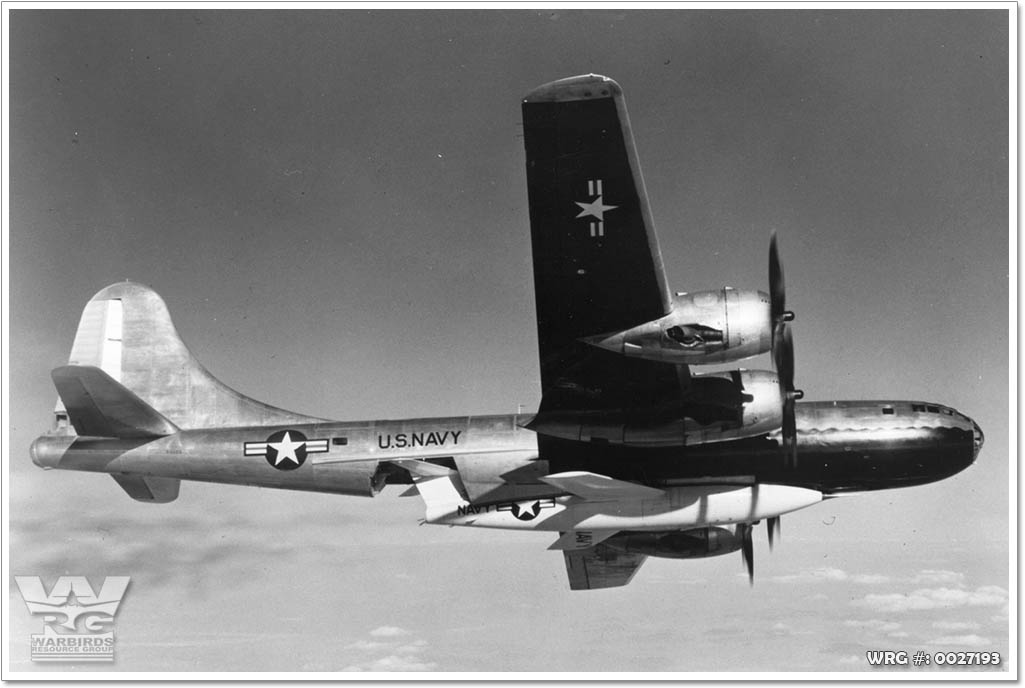

Boeing P2B-1S Superfortress/Bu. 84029 carrying a Douglas D-558-II Skyrocket.
Boeing P2B-1S Superfortress/Bu. 84029 carrying a Douglas D-558-II Skyrocket.
[Source: USFG Photo via air-and-space.com]

The P2B-1S "mother-ship" was nicknamed Fertile Myrtle and was assigned the NACA number 137. As of May 2013, this aircraft was in the collection of Kermit Weeks at his Fantasy of Flight aviation museum in Polk City, Florida. The forward fuselage section was restored and briefly displayed at the Florida Air Museum in Lakeland, Florida. It has since been relocated to Fantasy of Flight's "Golden Hill" storage facility along with the remainder of the disassembled aircraft and is awaiting full restoration to airworthy flying status at a future date.

BuNo 84030 and 84031 were later modified into anti-submarine patrol bombers and redesignated P2B-2S.

XB-39 Superfortress
The XB-39 Superfortress was a single YB-29 modified to use water-cooled Allison V-3420-17 Vee type engines. Since the Army Air Force was concerned that problems might develop with their first choice of engine, the Wright R-3350, they contracted General Motors to test a modified aircraft to show that it could still be used if the R-3350 development was not successful. Since the R-3350 did not have significant enough problems to prevent its use, no XB-39s were ordered.

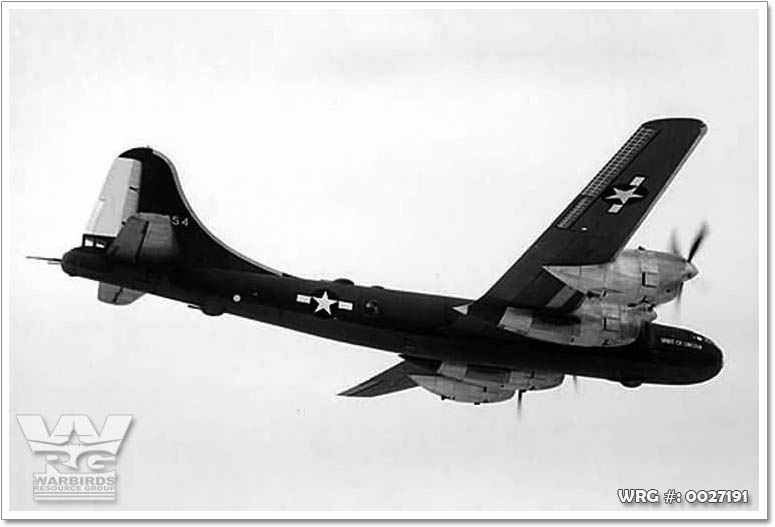

XB-39 Superfortress/41-36954 in flight
XB-39 Superfortress/41-36954 in flight
[Source: USAAF Photo]

Tupolev Tu-4
In 1945, three B-29s were forced to land in Soviet territory after a bombing raid on Japan because of lack of fuel. Since the Soviet Union was not at war with Japan at the time, the aircraft and crew were interned. Eventually, the B-29 crew members were returned, but the aircraft remained in Russian hands. Seeking a modern long-range bomber, Joseph Stalin ordered the Tupolev OKB to reverse-engineer the Superfortress.

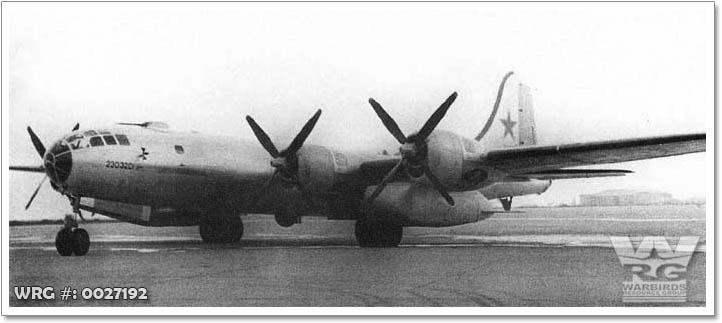

Tupolev Tu-4 Bull
Tupolev Tu-4 "Bull"
[Source: Unknown]

The resulting aircraft first flew on May 19, 1947 and immediately began series production. Although largely identical in appearance to American B-29s, the Tu-4 (NATO reporting name: "Bull"), had Soviet-designed defensive guns and had been re-engineered to suit production using material of metric thicknesses, resulting in an aircraft that was slightly heavier and slower than the B-29. The Tu-4 presented a significant leap forward in Soviet strategic bombing. Not only did the Soviet Air Forces have the means to deliver nuclear weapons, but the Tu-4 had sufficient range to reach the United States on a one-way trip. On October 18, 1949, a Tu-4 was used in the first air-drop test of a Soviet atomic bomb.

The Tu-4 had been phased out of Soviet service by the early 1960s, being replaced by more modern aircraft such as the Tupolev Tu-95. Although the Tu-4 never dropped a bomb in anger, it influenced Soviet aircraft technology, particularly airframe construction and onboard systems. Advanced transport and bomber variants of the Tu-4 design such as the Tu-70, Tu-75, Tu-80, and Tu-85, were developed and built, but none of these achieved series production.

The People's Liberation Army Air Force of China attempted to use the Tu-4 airframe in KJ-1AWACS aircraft.
