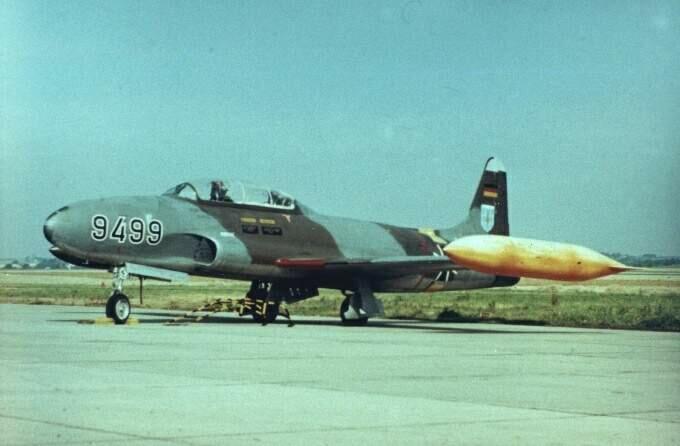

Lockheed T-33 Shooting Star

Type: Dual Control Trainer
Origin: Lockheed
Models: A
First Flight: N/A
Service Delivery: N/A
Final Delivery: N/A

Engine:
One Allison J33-35
Thrust: 5,200 lb. (2360 kg)

Fuel:
Capacity: N/A
Type: N/A

Dimensions:
Wing span: 11.85m (38 ft. 10.5 in.)
Length: 10.51m (34 ft. 6 in.)
Height: 3.55m (11 ft. 8 in.)
Wing Surface Area: N/A

  Weights:
Empty: 8,084 lbs. (3667 kg)
Max. Load: 14,442 lbs. (6551 kg)

Performance:
Max. Speed: 590-606 mph (950-975 kph)
Initial climb: 5,000 ft./min (1524 km/min)
Service Ceiling: 14,630m (48,000 ft.)
Range: 1,100-1,250 Miles (1770-2000 km)

Armament:
None

Avionics:
N/A


Comments:
The T-33 has trained more pilots in more Western countries than any other trainer. The T-33 was developed from a P-80C Shooting Star taken from the production line and modified with a additional fuselage section for an additional seat. After 50 years the T-33 is still in service with some Third World countries and is a popular warbird.
