F-4F Phantom II
Type: Fighter/Ground Attack
Crew: 2
Manufacturer: McDonnell-Douglas
Powerplant:N/A

Dimensions:
Weight: 21,950 kg.
Height: 5.01 m
Length: 19.40 m
Wing Span: 11.70 m

Performance: Top Speed: Mach 2+
Ceiling: N/A
Rate Of Climb: N/A
Roll Rate: N/A

Armaments:
4 x AIM-120A AMRAMM AA Missles

 Avionics: N/A
All 147 of the Luftwaffe's F-4Fs have received the ICE (Improved Combat Efficiency) upgrade. This upgrade consists of:
MILSTD 1553B Digital Data Bus
Hughes APG-65 Radar (same as F/A-18)
Honeywell H-423 laser inertial gyro autonomous navigation system
GEC CPU-143/A Digital Air computer which is linked to the 1553B data bus

Squadron Information
F-4F's are currently used by the following squadrons:
Jagdgeshwader 71 (JG 71) "Richthofen"
Jagdgeshwader 72 (JG 72)
Jagdgeshwader 74 (JG 74) "Molders"
Jagdgeshwader 75 (JG 75)

Additional Information
With the ICE upgrade, the F-4F is due to remain in Luftwaffe service until at least 2005.
The Luftwaffe maintains a squadron with the United States Air Force's 49th Fighter Wing at Holloman AFB, New Mexico. The 10 F-4E's air kept there for training purposes and to train new crews without having the severe airspace restrictions that are present in Germany.
11-12 F-4F's as well as Tornado's deploy to CFB Goose Bay, Canada every year for low-level flight and weapons training.
Additional Images:

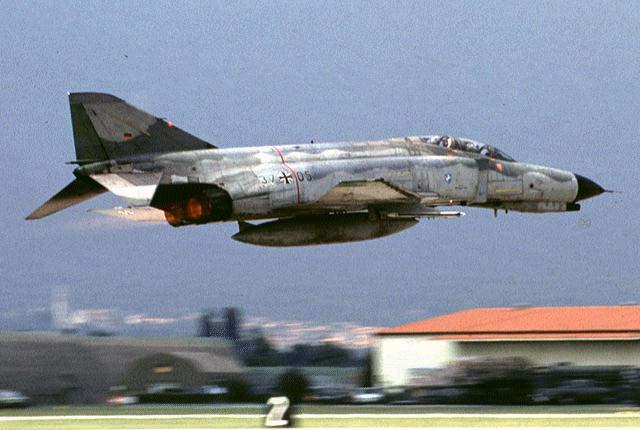

Image 1 - A Phantom in flight
Image 2 - A F-4F (37+16) flying in formation with Eurofighter 2000's first flight. Daimler-Benz Aerospace
Image 3 - A Phantom parked at an air show.

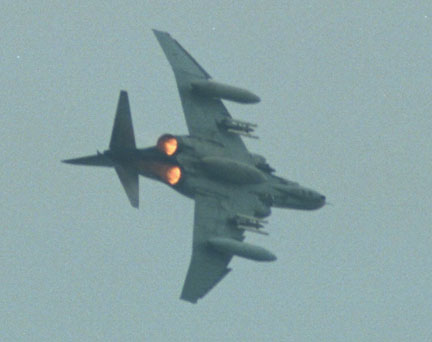

Image 4 - Same Phantom, in flight with afterburners lit.
Image 5 - Same Phantom after landing, drogue chute deployed.
Image 6 - Three Luftwaffe Phantoms in formation.
Image 7 - Two Luftwaffe Phantoms in formation.
Image 8 - A Luftwaffe Phantom parked on the tarmac.
Image 9 - A Luftwaffe Phantom coming in to land.
Thanks to Troy Quigley for his help with the Avionics and Squadron data
