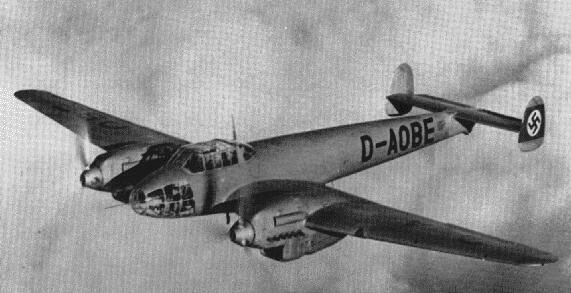

MESSERSCHMITT Bf 162
This aircraft was derived from the Bf 110 in response to a 1935 RLM specification
for a Schnellbomber (Fast Bomber). The German propaganda department release a picture
in 1939-1940 of this aircraft and called it the Messerschmitt Jaguar. The Bf 161 was a
similar aircraft with a different nose and was to be used as a reconnaissance.
Type: Light Bomber
Origin: Bayerische Flugzeugwerke AG
Models: V1 to V3
First Flight: Spring 1937
Service Delivery: None
Final Delivery: None
Powerplant:
Model: Daimler-Benz DB 600Aa
Type: Inverted V12 Liquid Cooled
Number: Two Horsepower: 986 hp
Dimensions:
Wing span: 17.16m (56 ft. 3½ in.)
Length: 12.75m (41 ft. 10 in.)
Height: 3.58m (11 ft. 9 in.)
Wing Surface Area: N/A
Origin: Bayerische Flugzeugwerke AG
Models: V1 to V3
First Flight: Spring 1937
Service Delivery: None
Final Delivery: None
Powerplant:
Model: Daimler-Benz DB 600Aa
Type: Inverted V12 Liquid Cooled
Number: Two Horsepower: 986 hp
Dimensions:
Wing span: 17.16m (56 ft. 3½ in.)
Length: 12.75m (41 ft. 10 in.)
Height: 3.58m (11 ft. 9 in.)
Wing Surface Area: N/A
Weights:
Empty: 4400kg (9,700 lbs.)
Loaded: 5800kg (12,787 lbs.) Performance:
Maximum Speed: 480kph (298 mph)
Initial climb: N/A
Service Ceiling: N/A
Range: 485 Miles (780 km)
Armament:
Ten 110 lb. (50kg) bombs
And additional two 551 lb. (250kg) externally as overload.
Avionics: N/A
Empty: 4400kg (9,700 lbs.)
Loaded: 5800kg (12,787 lbs.) Performance:
Maximum Speed: 480kph (298 mph)
Initial climb: N/A
Service Ceiling: N/A
Range: 485 Miles (780 km)
Armament:
Ten 110 lb. (50kg) bombs
And additional two 551 lb. (250kg) externally as overload.
Avionics: N/A
, 1977, Salamander Books Ltd., London
