Heinkel He 114
Designed to replace the He 60, the He 114 suffered from substantial teething problems resulting in nine prototypes being built. This aircraft was never really successful and only small numbers of various versions were built. These served briefly with the Luftwaffe before being transferred to Romania, Spain and Sweden.

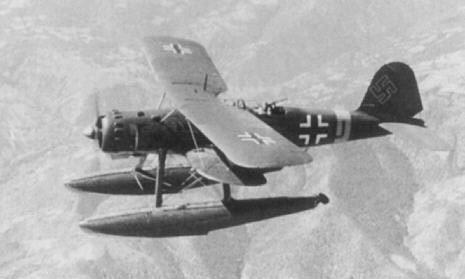

Heinkel He 114
Heinkel He 114
[Source: Unknown]

Type: Reconnaissance Seaplane
Origin: Ernst Heinkel AG
Models: V1 to V9, A, B, and C series
First Flight: Spring 1936
Service Delivery: N/A
Final Delivery: N/A

Powerplant:
He 114A-2: BMW 132K 9-Cylinder Radial
Horsepower: 880hp


Dimensions:
Wing span: 13.60m (44 ft. 7½ in.)
Length: 11.64m (38 ft. 2½ in.)
Height: 5.15m (16 ft. 10¾ in.)
Wing Surface Area: N/A

Weights: (A-2)
Empty: 2315kg (5,104 lbs.)
Maximum: 3670kg (8,090 lbs.)

Performance: (A-2)
Maximum Speed: 335kph (208 mph)
Initial climb: N/A
Service Ceiling: N/A
Range: 571 Miles (920 km)

Armament:
One 7.92mm manually aimed MG 15 mounted in rear cockpit

Bomb load:
Two 110 lb (50kg) bombs

Sources:
Gunston, Bill & Wood, Tony - Hitler's Luftwaffe, 1977, Salamander Books Ltd., London
Donald, David - The Complete Encyclopedia Of World Aircraft, 1997, Brown Packaging Books Ltd., London
