Mk 101 Maschinenkanone
Mk 101 Maschinenkanone

Manufacturer: Rheinmetall-Borsig
Designer: Rheinmetall-Borsig
Designed: 1935
Produced: 1943-1945
Action: Recoil
Caliber: 30mm
Weight: 53 Lbs (26.3 kg)
Length: 52.8 In. (1.37m)
Shell: 20 x 80 mm
Weight: 394 pounds (179 kg)
Length: 96 inches (2,400 mm)
Barrel length: 47.2 inches (1,200 mm)
Cartridge: 30x184B mm
Rate of fire: 230-250 rounds/min
Muzzle velocity: 960 m/s (3,168 ft/s)

The Mk 101 Maschinenkanone is the designation of a 30 mm autocannon used in German combat aircraft during World War II. Although accurate and powerful, with a high muzzle velocity, it was very heavy, with a low rate of fire, which limited its production.

Developed in 1935 by Rheinmetall-Borsig as a commercial venture as the MG-101 (later designated MK 101, with the "MK" abbreviating the term Maschinenkanone, as an autocannon), the MK 101 cannon was a 30 mm (1.18 in), long-barreled automatic cannon capable of firing nine different types of 30x184B mm ammunition (ranging from basic high explosive to tungsten-cored armor-piercing rounds). Featuring pneumatic cocking and fired by percussion via an electrical solenoid, the Mk 101 was recoil-operated. In operation, the barrel and bolt recoiled 30 mm (1.18 in) to the rear after each shot. The bolt locked via a Stange-type machined sleeve with internal interrupted threads, similar to some Solothurn weapons such as the 7.92 mm MG 30 light machine gun. The locking system was strong, but rate of fire was limited to a rather slow 230-250 rpm, which limited its use against other aircraft. Powerful and accurate for its day, it was carried primarily on the Henschel Hs 129 ground-attack aircraft, commencing in late 1941. Fed by a 10-round (early versions) or a 30-round box magazine, the MK 101 could penetrate 75 mm (3 in) of armor at 300 m (330 yd) range.

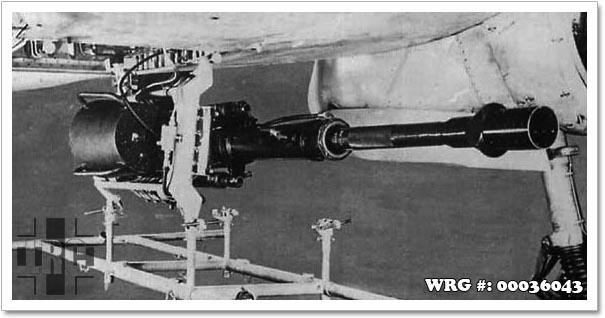

The dozen examples created of the Heinkel He 177A-1/U2 Zerstörer experimental prototype attack aircraft used twinned MK 101s on a forward-aimed limited-traverse mount, located in the extreme lower nose at the front of a dramatically enlarged Bola inverted-casemate gondola emplacement under the nose, and was intended for anti-shipping and possible "train-busting" use, but was never deployed in combat. When it was used from beneath an Hs 129's central fuselage as a ventral gun pod-mounted anti-tank weapon, the Mk-101's tungsten-cored AP round was capable of penetrating the turret and side armor of the Soviet KV-1 heavy tank. An electrically-fired version of the MK 101 cannon was later developed and designated the MK 103.
