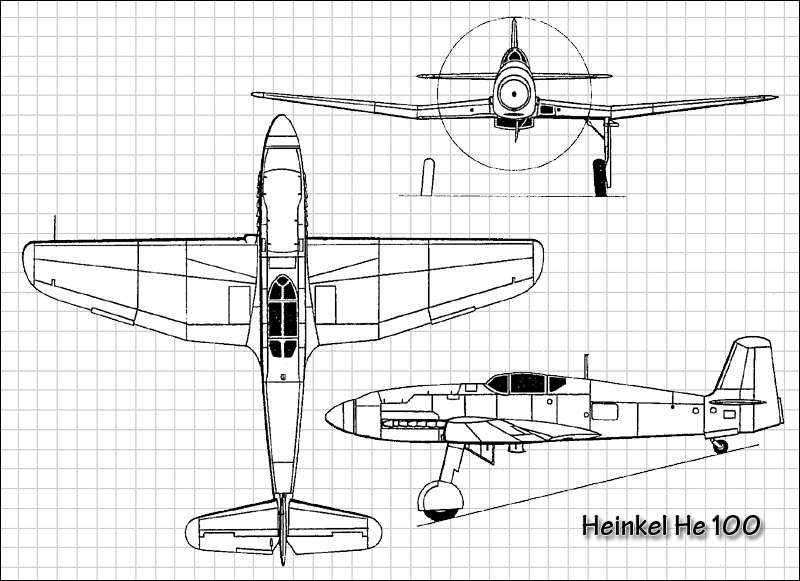

Heinkel He 100



Origin: Ernst Heinkel AG
Models: He 100 V1 to V8 and He 100D-1
Type: Single-seat fighter
First Flight: Jan. 22, 1938
Number produced: 25

ENGINE:
Model: Daimler-Benz DB 601 Aa
Type: Inverted-vee-12 liquid-cooled
Number: One      Horsepower: 1,175 hp

DIMENSIONS:
Span: 30 ft. 10¾ in. (9.41m)
Length: 26 ft. 10¾ in. (8.195m)
Height: 11 ft. 9¾ in. (3.60m)
Wing area: 156 sq. ft (14.5 sq. m)
  WEIGHTS:
Empty: 1810kg (3,990 lbs.)
Maximum Loaded: 2500kg (5,512 lbs.)

PERFORMANCE:
Maximum speed: 670kph (416mph)
Service Ceiling: 11,000m (36,090ft)
Range: 900km (559 Miles)


ARMAMENT:
He 100D-0: Two MG 17 and a 20mm MG/FF
He 100D-1: N/A

Sources:
Gunston, Bill & Wood, Tony - Hitler's Luftwaffe, 1977, Salamander Books Ltd., London
Wikipedia - He 100
