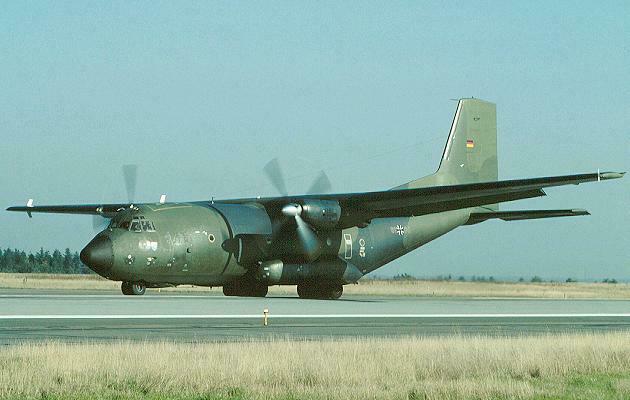

Transall C-160 D



Type: Multi-Role Transport
Manufacturer: Transall Group (See Comments)
Crew: N/A
First Flight: N/A
Service Delivery: N/A
Production: N/A

Powerplant:
Model: Rolls Royce Tyne RTy.20 Mk. 22
Type: Turboprops
Number: Two      Thrust: 4549 eKW (6,100 eshp)

Dimensions:
Height: 38 ft. 2¾ in. (11.65m)
Length: 106 ft. 3½ in. (32.40m)
Wing Span: 131 ft. 2¾ in. (40.0m)
Wing Area: 322.93 sq. ft. (30.00m²)

Weights:
Empty: 63,934 lb. (29,000 kg.)
Maximum Take-Off: 112,436 lb. (51,000 kg.)
  Performance:
Top Speed: 319 mph (513 kph) at 16,000 ft. (4875m)
Ceiling: 27,000 ft. (8230m)
Range (Max. Payload): 1,150 miles (1850 km)

Cargo Capacity:
93 Troop, 61-88 Paratroops, 62 Stretcher case plus attendants
35,274 lb. (16000 kg) of vehicles or cargo

Production:
France: 60 C.160F (+29 C.160NG form 2nd production run)
West Germany: 90 C.160D
Turkey: 20 C.160T
South Africa: 9 C.160Z

Comments:
Transall (Transport Alliance) group formed in January 1959 by Aérospatiale in France and Messerschmitt-Bölkow-Blohm and Vereinigte Flugtechnische Werke in Germany.
