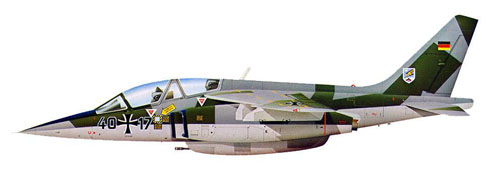

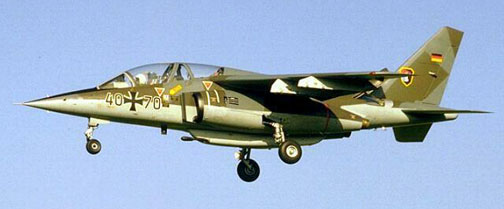

Dassault/Dornier Alphajet


Copyright © 1998 Michel Klaver

Type: Strike Fighter
Model: A model used by Luftwaffe
Crew: 1
Manufacturer: Dassault-Breguet/Dornier
Service Delivery: Luftwaffe: March 1979
Number Acquired By Luftwaffe: 176

Powerplant:
Model: SNECMA/Turbomeca Lazrac 04-C5
Type: Turbofan
Number: Two      Thrust: N/A

Dimensions:
Height: 4.33 m
Length: 13.23 m
Wing Span: 9.11 m

Weights:
Empty Weight: 3,515 kg.
Max. Weight: 8,000 kg.
  Performance:
Top Speed: Mach 0.86
Range: 2,780 Miles
Ceiling: 15,000 m
Rate Of Climb: N/A
Roll Rate: N/A
Payload: 2,500 kg.

Armaments:
1 x 27mm Cannon

Avionics: N/A




Sources:
Donald, David - The Complete Encyclodepia of the World Aircraft, 1997, Barnes & Nobles Books
