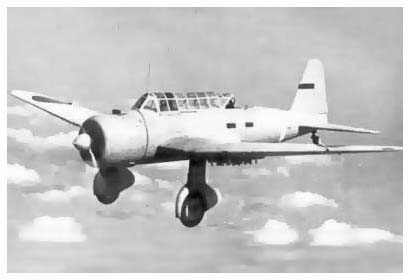

Mitsubishi Ki-30
Type: Light Bomber
Origin: Mitsubishi
Crew: Two
Allied Code Name: Ann
Models: Ki-30
First Flight: February 1937
Service Delivery: October 1938
Final Delivery: 1941
Production: 706
Powerplant:
Model: Mitsubishi Ha-5 Kuisei
Type: 14-cylinder two-row radial engine
Number: One       Horsepower: 950 hp

Dimensions:
Wing Span: 14.55m (47 ft. 8¾ in.)
Length: 10.34m (33 ft. 11 in.)
Height: 3.65m (11 ft. 11¾ in.)
Wing Area: N/A



Weights:
Empty: 2230 kg (4,915 lb)
Loaded: 3322 kg (7,324 lb)

Performance:
Max. Speed: 423 km/h (263 mph)
Initial Climb: 1,640 ft/min (500 m/min)
Service Ceiling: 8570m (28,117 ft.)
Max. Range: 1700 km (1,056 miles)

Armament:
One 7.7mm Type 89 in fixed in wing
   (sometimes both wings)
One 7.7mm Type 89 manually aimed in rear cockpit

Bomb Load:
Three 220 lb. (100 kg) of bombs carried internally

Avionics:
N/A
Comments:
The first Japanese design to mount a twin-row radial engine as well as having an internal bomb bay, flaps and constant-speed propelllor, the Ki-30 was an integral part of the Japanese Army's modernization program in 1935. Available in sufficient numbers, the type played a large part of the Sino-Japanese war. The Ki-30 supported the advance into the Philipines in 1942 but were subsequently withdrawn from front-line service.
Sources:
The Complete Encyclopedia of World Aircraft, 1997, Barnes & Nobles Books, ISBN: 0 7607 0592 5
