FAIREY FIREFLY

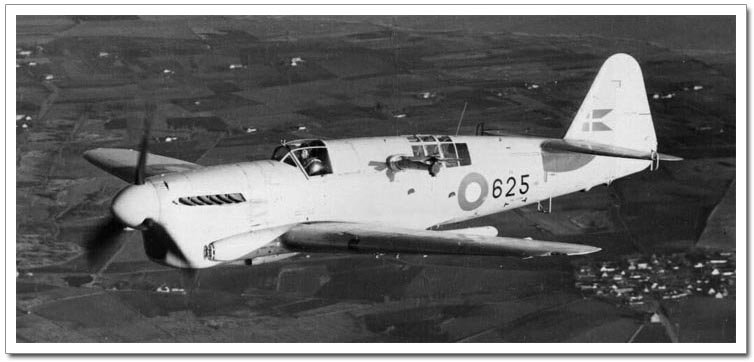

Fairey Firefly
Type: Carrier based reconaissance fighter
Origin: Fairey
Crew: Two
Model: Mark I - IV
First Flight: December 22, 1941
Final Delivery: Mark IV: 1947
Production:
  Mark I: 500
  Mark II: 200
  Mark III: 100

POWERPLANT:
F.R. Mark I:
    Model: Rolls-Royce Griffon IIB
    Type: 12-Cylinder vee liquid cooled engine
    Number: One       Horsepower: 1,730 hp

F.R. Mark IV:
    Model: Rolls-Royce Griffon 74
    Type: 12-Cylinder vee liquid cooled engine
    Number: One       Horsepower: 2,245 hp

DIMENSIONS:
Wing span:
    Mark I: 44 ft. 6 in.
    Mark IV: 41 ft. 2 in.
Length:
    Mark I: 37 ft. 7.25 in.
    Mark IV: 37 ft. 11 in.
Height:
    Mark I: 13 ft. 7 in.
    Mark IV: 14 ft. 4 in.
Wing Surface Area:
    Mark I: 328 sq. ft.
    Mark IV: 330 sq. ft.
  WEIGHTS:
Empty:
    Mark I: 9,750 lb.
    Mark IV: 9,674 lb.
Loaded:
    Mark I: 14,020 lb.
    Mark IV: 14,200 lb.

PERFORMANCE:
Maximum Speed:
    Mark I: 316 mph at 14,000 ft.
    Mark IV: 386 mph at 14,000 ft.
Climb to 10,000 ft.:
    Mark I: 5 minutes 45 seconds
    Mark IV: 7 minutes 9 seconds
Service Ceiling:
    Mark I: 28,000 ft.
    Mark I: 28,800 ft.
Range (With Drop Tanks):
    Mark I: 1,070 miles
    Mark I: 1,300 miles

ARMAMENT:
Four 20mm Hispano Cannon
   Ammunition: N/A

Bomb Load:
Mark I:
Eight 60 lb. rockets or
Two 1,000 lb bombs

Mark IV:
Sixteen 60 lb. rockets or
Two 1,000 lb bombs

Sources:
Gunston, Bill - The Encyclodepia of the Worlds Combat aircraft, 1976, Chartwell Books, Inc., New York
